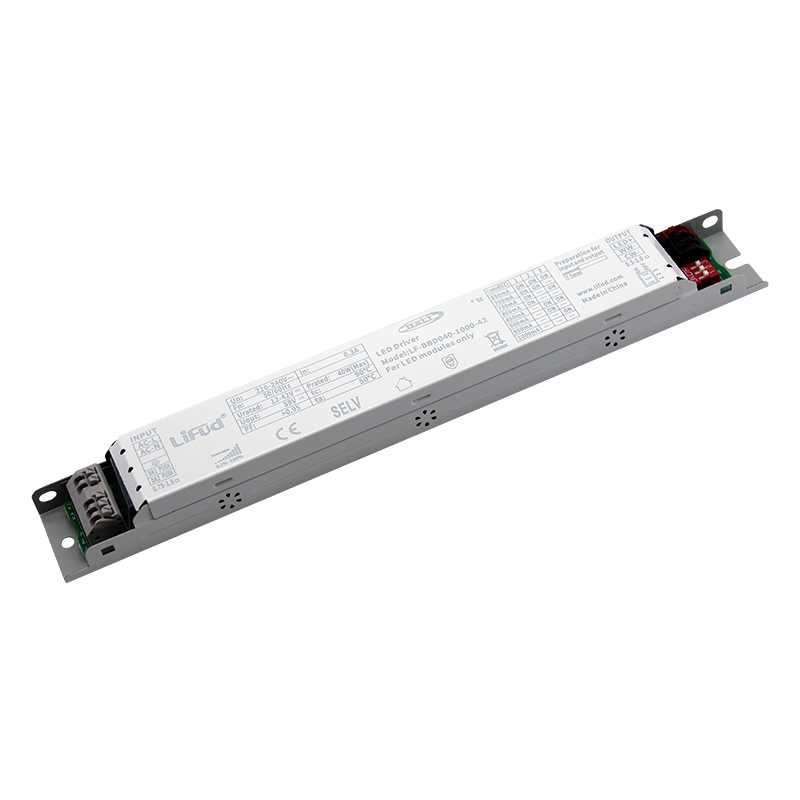

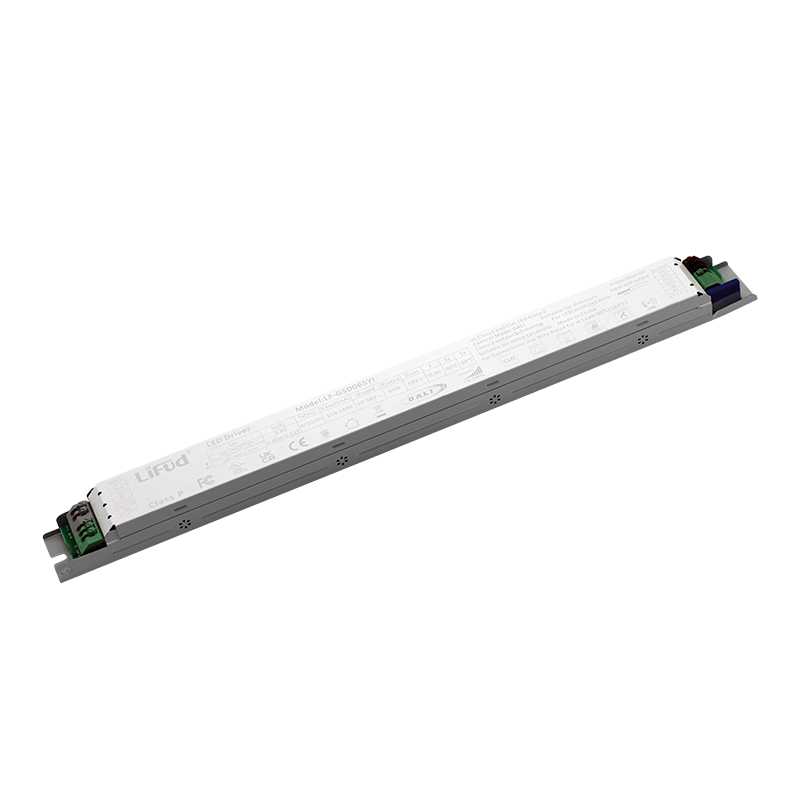

Model
LF-FSDxxxYE
Parameters
Operating voltage: 220-240Vac
Output power: 18-75W
Output voltage: 40-240Vdc
Features
1. D4i+DT8 dimming; Multiple modes optional: 1 channel DT8 (1 address), 1 channel DT6 (1 address), 2 channels DT6 (2 addresses)
2. Output current, dimming curve, DALI address and other parameters can be set by NFC
3. Advanced functions: EL, CLO; flicker-free
4. Built-in DALI bus power supply
5. Supports DALI Part 251, 252, 253
6. Stand-by power consumption<0.3W, complying with the latest ErP
7. Protection: L-N:2kV; L/N-PE:4kV
8. Two terminals optional: 0° straight plug terminal and 45° inclined plug terminal
Warranty
5 years
Certifications
DALI-2, D4i, ENEC, CE, CB, RCM, EL
Applications
linear light, tri-proof light, etc.
Subject to change without notice. Errors and omissions excepted. Always make sure to use the most recent release.
