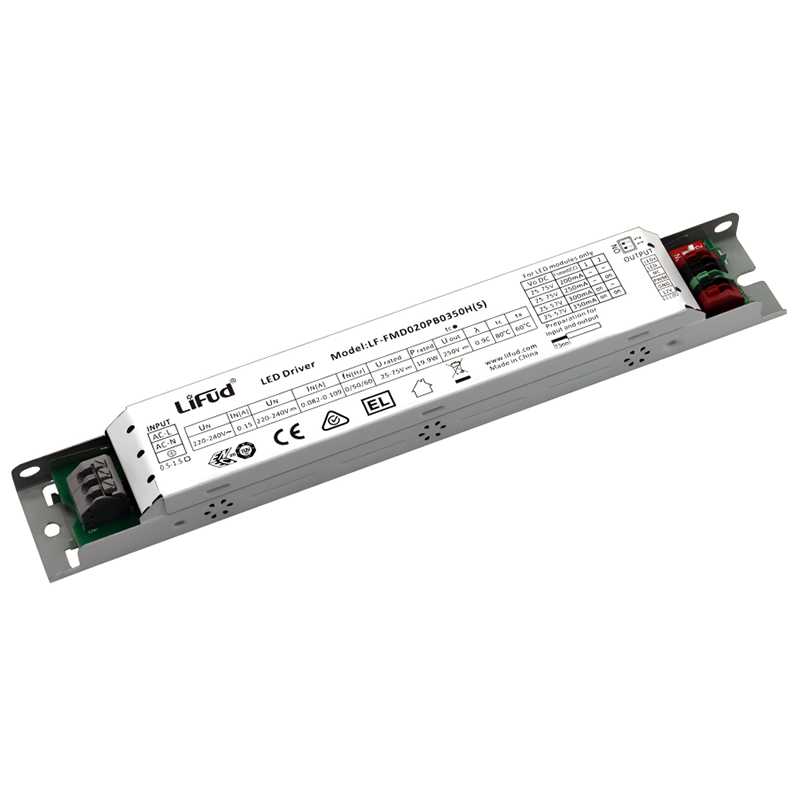

LF-FMDxxxPB PWM Dimmable LED Driver

Model

LF-GSDxxxYJ

Parameters

Operating voltage: 220-240Vac; 198-264Vdc

Output power: 11.2-80W

Output voltage: 10-56Vdc

Features

1. DALI-2 DT8 & DT6 (switchable via NFC) & PUSH dimmable
2. High efficiency up to 91%
3. Support DALI Part 251, 252, 253
4. Output current, DALI parameters and advanced functions set via NFC
5. Advanced functions: EL, corridorDIM, CLO
6. Dimming depth: 0.1%; smooth dimming
7. According to Zhaga Book 13
8. THD＜10%, stand-by power<0.3W, complying with the latest ErP
9. Surge: PUSH: 1kV; L-N: 2kV
10. Ta：-30℃ ~ +60℃

Warranty

5 years

Certifications

ENEC, CE, CB, RCM, CCC, EL, UKCA

Applications

Linear light, tri-proof light

Subject to change without notice. Errors and omissions excepted. Always make sure to use the most recent release.
