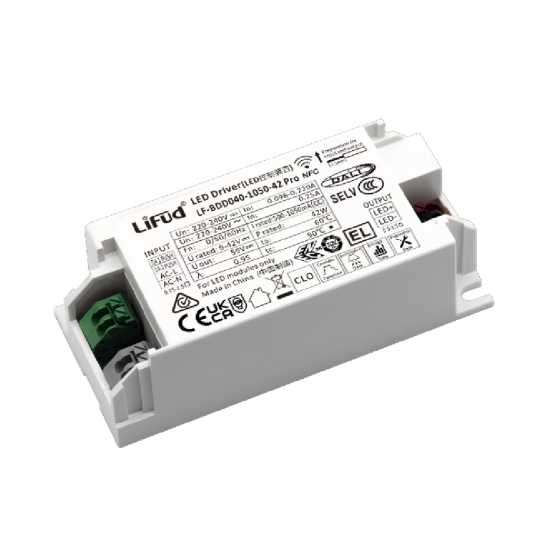

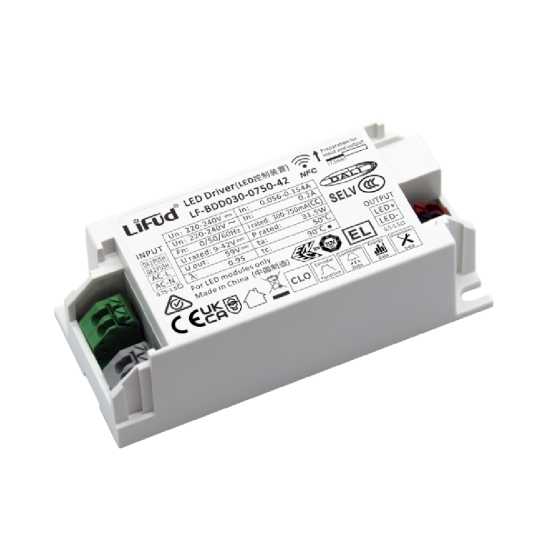

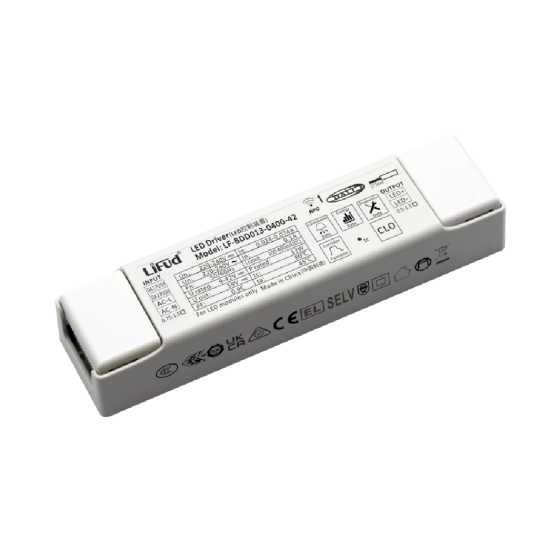

LF-BDDxxx DALI-2 DT6 + NFC Dimmable LED Driver

Model

LF-BDDxxx

Parameters

Operating voltage: 220-240Vac

Output power: 5-40W

Output voltage: 9-42Vdc

Features

1. DALI-2 DT6 & PUSH dimmable, PUSH: 1kV

2. Output current, dimming curve, DALI address and other parameters set via NFC

3. Advanced functions: EL, corridorDIM, CLO

4. Support DALI Part 251, 252, 253

5. According to the Zhaga Book13, 24; the end-cap is removable

6. Support independent and built-in use

7. Ta：-30℃ ~+60℃; L-N: 2kV

Warranty

5 years

Certifications

CCC, ENEC, UKCA, CE, CB, EL, RCM, DALI-2

Applications

Indoor office lighting, commercial lighting, residential lighting
