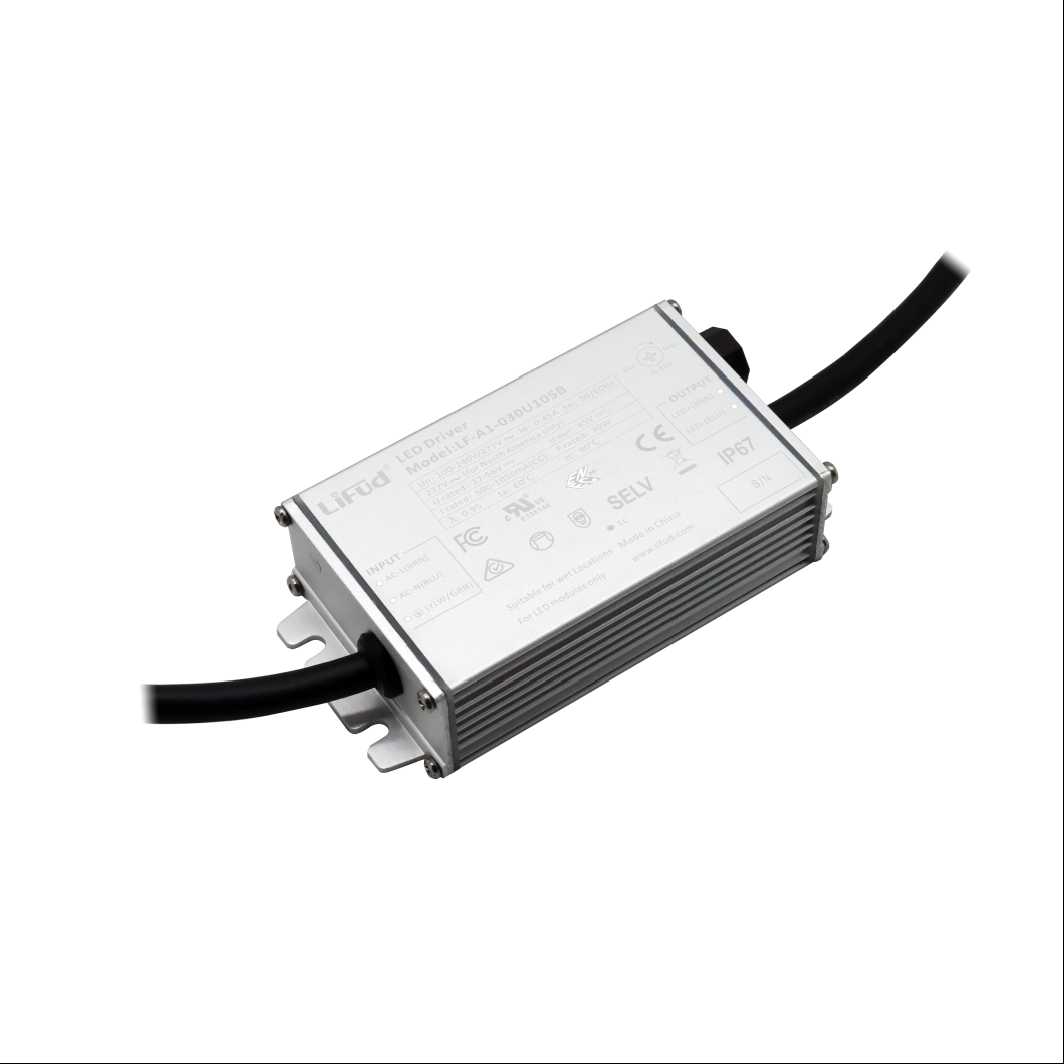

Model
LF-A1-xxxH/UxxxB
Parameters
Operating voltage: 100-277Vac；220-240Vac
Output power: 13.5-60W
Output voltage: 27-90Vdc
Features
1. Output current adjustable via potentiometer
2. Protections: short circuit, open circuit and over temperature
3. IP67
4. L-N: 4kV, L/N-G: 6kV
Warranty
5 years
Certifications
TUV-ENEC, CE, RCM, CB, FCC, UL
Applications
Street light
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
| Application area | outdoor driver |
|---|
| Model | Input Voltage (Vac) | Output Power (W, max) | Output Voltage (Vdc) | Output Current (mA) | Efficiency (full load) | PF (full load) | Dimensions (L*W*H/mm) |
| LF-A1-030U105B | 100-277 | 30 | 27-56 | 500-1050 | 88% | 0.95 | 114*64*32mm |
| LF-A1-050U165B | 100-277 | 50 | 27-56 | 700-1650 | 90% | 0.95 | 122*64*32mm |
| LF-A1-050U090B | 100-277 | 50 | 40-90 | 550-900 | 90% | 0.95 | 122*64*32mm |
| LF-A1-040H135B | 220-240 | 40 | 27-56 | 600-1350 | 89% | 0.95 | 114*64*32mm |
| LF-A1-060H200B | 220-240 | 60 | 27-56 | 1000-2000 | 90% | 0.95 | 114*64*32mm |
| Model | Quantity | Weight | Packaging Dimensions (L*W*H) |
| LF-A1-030U105B | 24 pcs/ctn | 11 kg/ctn | 440*370*167 mm |
| LF-A1-050U90B | 24 pcs/ctn | 13 kg/ctn | 440*370*167 mm |
| LF-A1-050U165B | 24 pcs/ctn | 13 kg/ctn | 440*370*167 mm |
| LF-A1-040H135B | 24 pcs/ctn | 11 kg/ctn | 440*370*167 mm |
| LF-A1-060H200B | 24 pcs/ctn | 11 kg/ctn | 440*370*167 mm |
