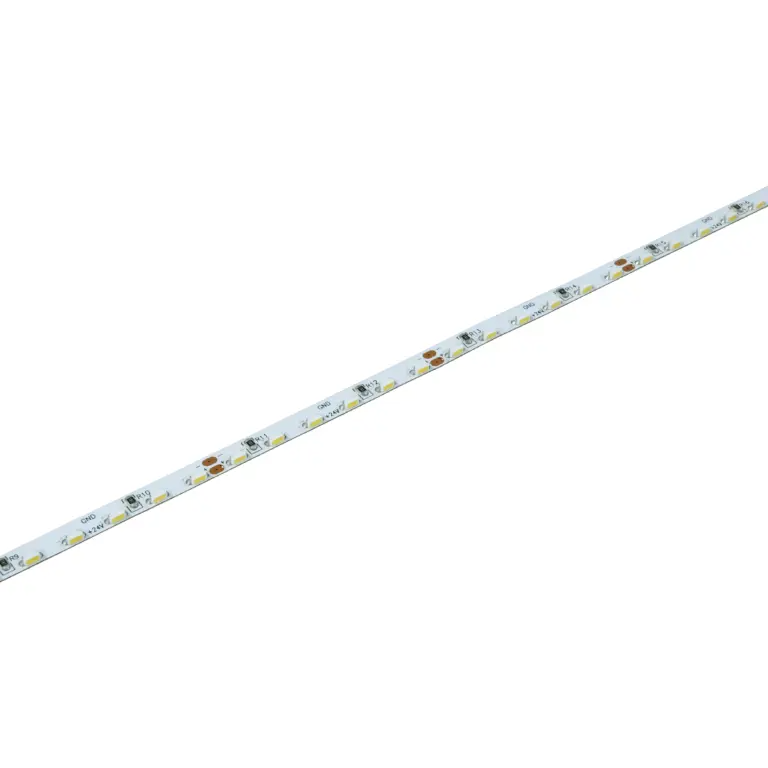

Flexible LED Strip Light | Side View | 9.6W/m 120 LED/m 24V 4000ºK IP20

Categories: ,

This side view flexible strip light has the advantage of being mounted on a surface with the light emitting on it’s horizontal.  Used in many places such as curved joinery.  Its 5mm width allows it to be placed in obscurity.



CRI is >80, higher CRI up to 99 can be ordered.



The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.



This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require either IP54 or IP67.

Specifications

Electrical Data
Voltage 24 VDC
Wattage 1m 9.6 W
Current 1m 0.8 A
LED Data
Package Type 3014
Chips LED 1
LEDs 1m 120
Photometric Data
Colour Temperature 4000K
Colour Rendering Index Ra >80
Luminous Flux 1m 960
Luminous Efficacey 100
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
3oz
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 50mm (6 LEDs)
Length 5m
Width 5.0mm
Height 1.2mm
Lifetime
Working Life 70,0000 hrs
