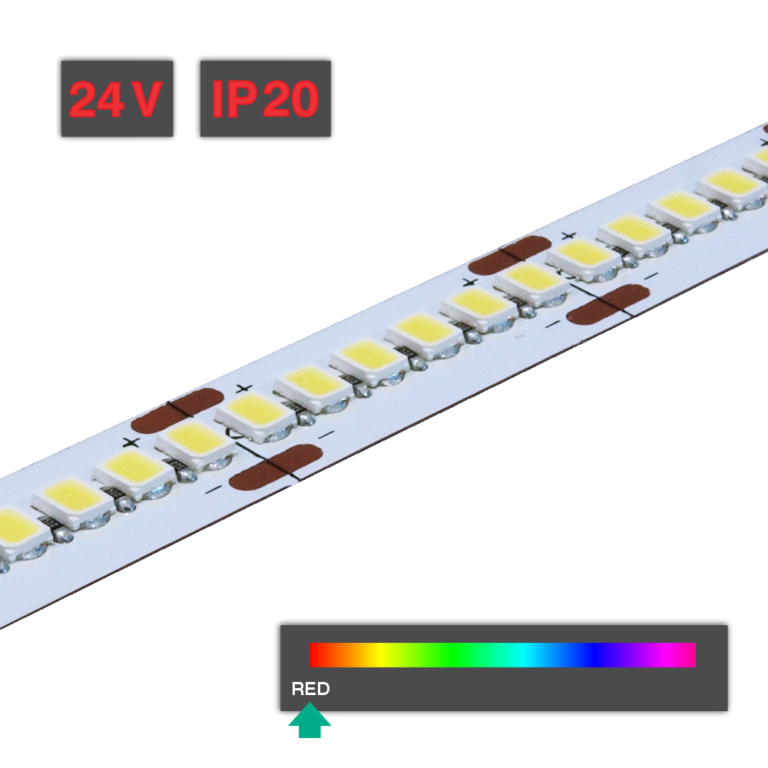

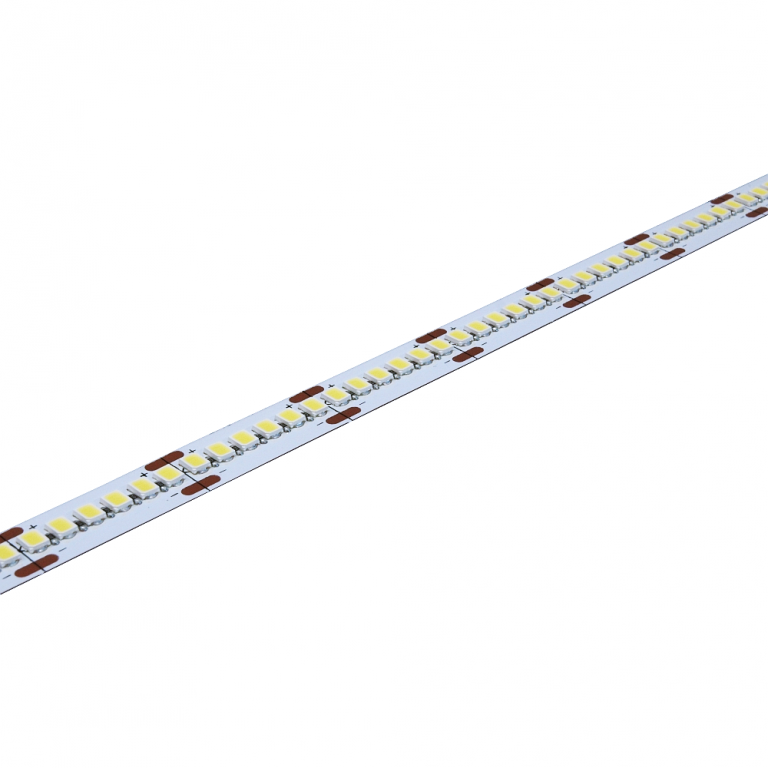

Flexible LED Strip Light | Series 7 | 24W/m 240 LED/m 24V Red IP20 10m

Application

Our Series 7 | 24W/m flexible LED strip light is suited to most applications requiring very high levels of light, the most common of which is room lighting where it is the only source of light. This LED strip must be attached to a thermal heatsink such as an aluminium profile or any other metal surface.



Environment

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.



Colour Consistency: One Bin

Colour consistency is one of the main factors for choosing a high quality LED strip. We can ensure colour consistency by selecting the same BIN per CCT.

Very few other suppliers will tell you which BIN of LEDs your strip has come from, this is important if you need to add to an existing installation. We will also keep a record of the CCT and BIN for all of your orders. The CCT and BIN is also printed on the outer packaging of each LED strip.

See here for the current BIN of each CCT.

Specifications

Electrical Data
Voltage 24 VDC
Wattage 1m 24.0 W
Current 1m 1.0 A
LED Data
Package Type 2835
Chips LED 1
LEDs 1m 240
Pitch 4.17 mm
Photometric Data
Colour Temperature Red
Colour Rendering Index Ra >80 (90 & 99 avail.)
Luminous Flux 1m N/A
Luminous Efficacy N/A/W
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 6 LEDs / 25mm
Length 20m
Width 10.0mm
Height 1.2mm
Lifetime
Working Life 70,0000 hrs
