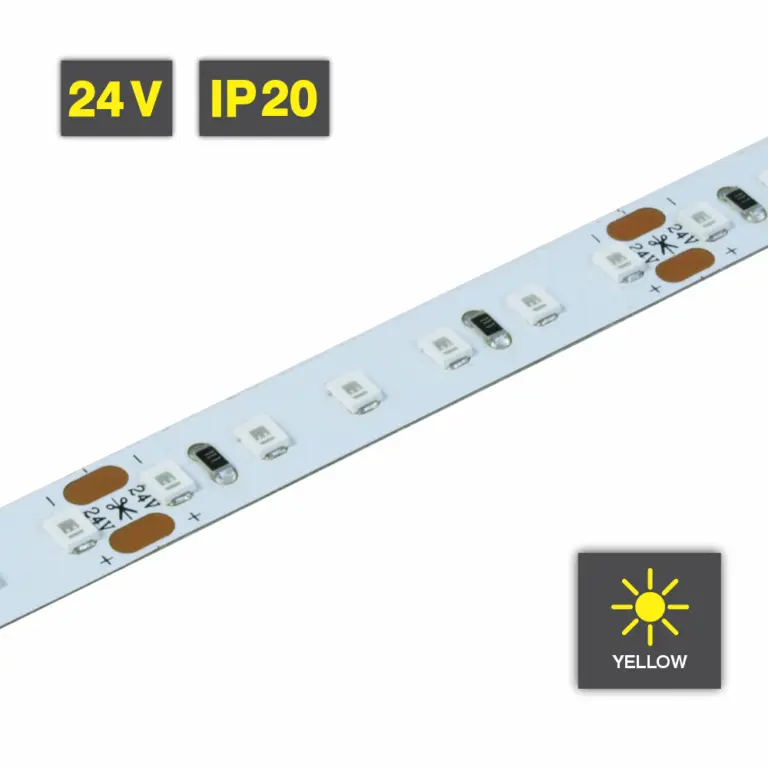

Flexible LED Strip Light | Series 5 | 14.4W/m 120 LED/m 24V Yellow IP20 5M

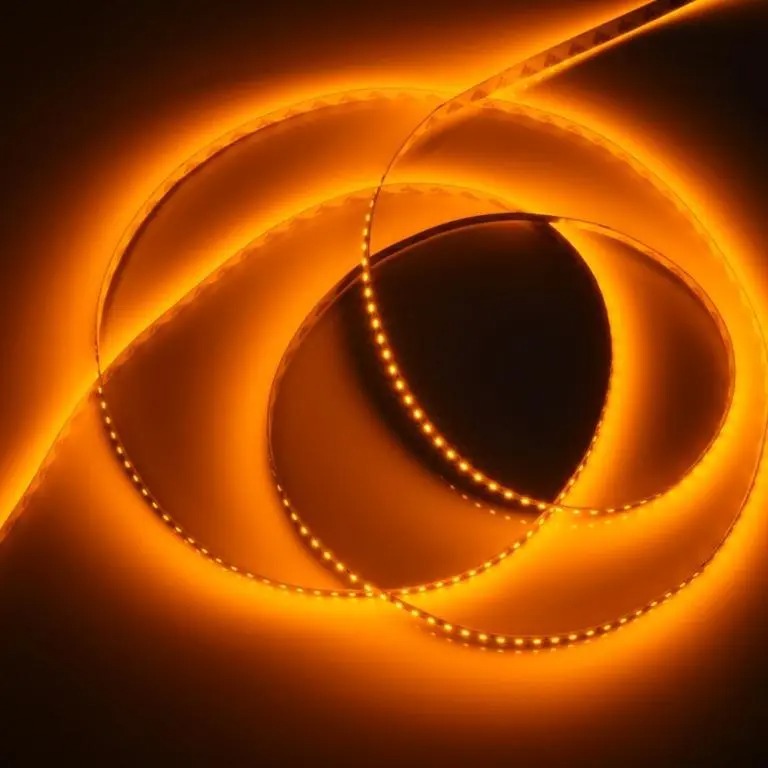

Our Series 5 | 14.4W/m flexible LED strip light uses 120/m of YELLOW 2835 LEDs.   The high density of LEDs minimise the visual dottiness and ensures a vivid bright colour.



As well as Yellow, we also stock other static colours; Green, Blue, Orange, Pink, Purple and Red.



The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.



The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.



This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. Please contact us if you require either IP54 or IP67.

Specifications

Electrical Data
Voltage 24 VDC
Wattage 1m 14.4 W
Current 1m 0.6 A
LED Data
Package Type 3528
Chips LED 1
LEDs 1m 120
Pitch 8.33 mm
Photometric Data
Colour Temperature Yellow
Colour Rendering Index Ra N/A
Luminous Flux 1m
Luminous Efficacey
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
3oz
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 6 LEDs / 50mm
Length 5m
Width 10.0mm
Height 1.2mm
Lifetime
Working Life 70,0000 hrs
