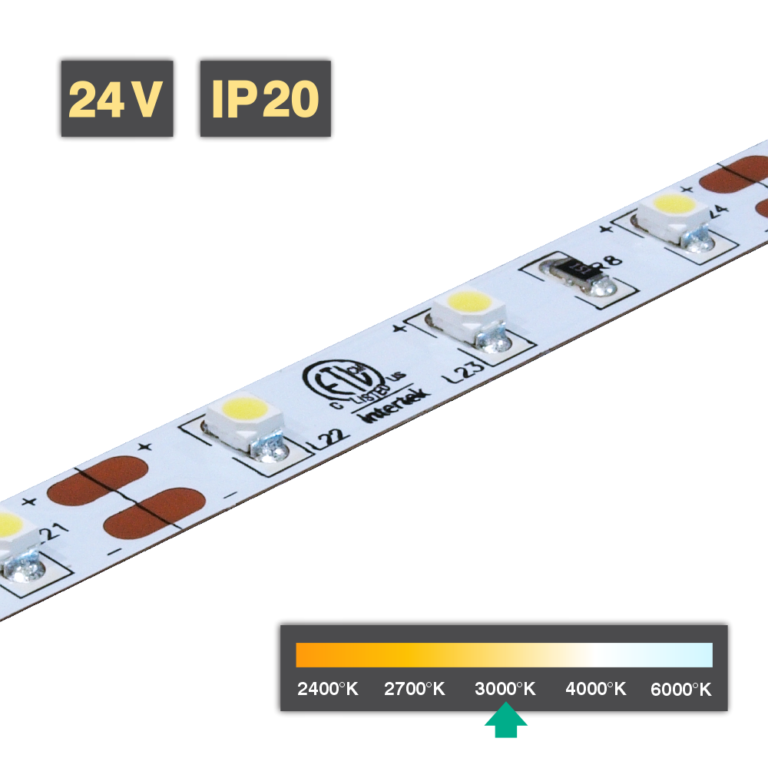

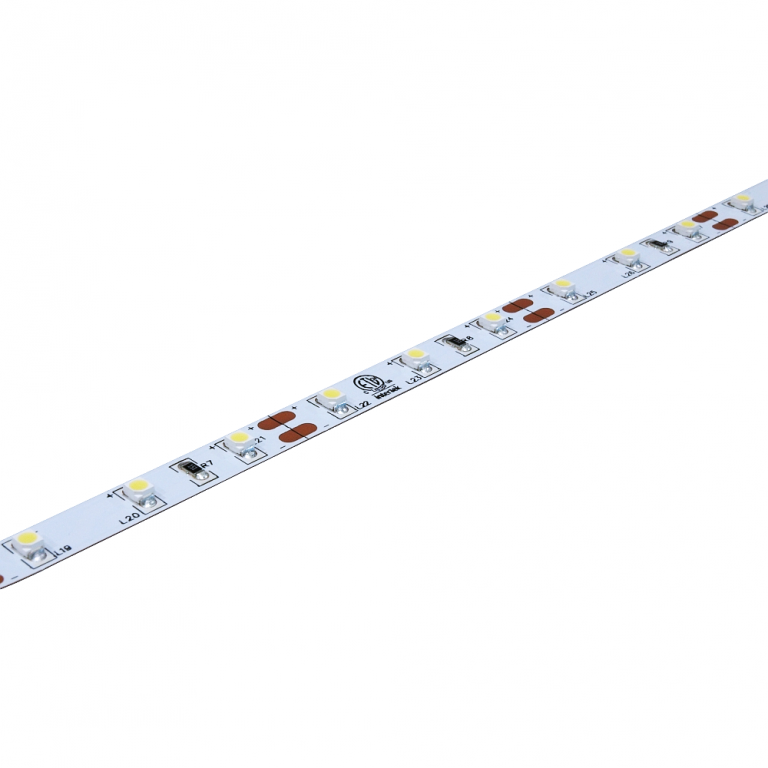

Flexible LED Strip Light | Series 1 | 4.8W/m 60 LED/m 24V 3000ºK IP20 5M

Categories: ,

Application

Our Series 1 | 4.8W/m flexible LED strip light is suited to applications requiring low levels of light, the most common of which is as under stair treads & kickboards and general mood lighting. The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.



Environment

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only. IP54 and IP67 environmental ratings are available.



CRI

The CRI of the series is >80. We can offer LED strip with a CRI of up to 99.



Colour Consistency: One Bin

Colour consistency is one of the main factors for choosing a high quality LED strip. We can ensure colour consistency by selecting the same BIN per CCT.

Very few other suppliers will tell you which BIN of LEDs your strip has come from, this is important if you need to add to an existing installation. We will also keep a record of the CCT and BIN for all of your orders. The CCT and BIN is also printed on the outer packaging of each LED strip.

See here for the current BIN of each CCT.

Specifications

Electrical Data
Voltage 24 VDC
Wattage 1m 4.8 W
Current 1m 0.2 A
LED Data
Package Type 3528
Chips LED 1
LEDs 1m 60
Pitch 16.7 mm
Photometric Data
Colour Temperature 3000°K
Colour Rendering Index Ra >80 (90, 98 avail.)
Luminous Flux 1m 420 lm
Luminous Efficacey 87.5 lm/W
Beam Angle 120°
Dimmable 1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate Double layer FPCB
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 6 LEDs / 100mm
Length 5m
Width 8.0mm
Height 2.0mm
Lifetime
Working Life 70,0000 hrs
