Flexible LED Strip Light | 12V 19.2W/m 120 LED/m Dual White & Orange IP20 20M

Categories: ,

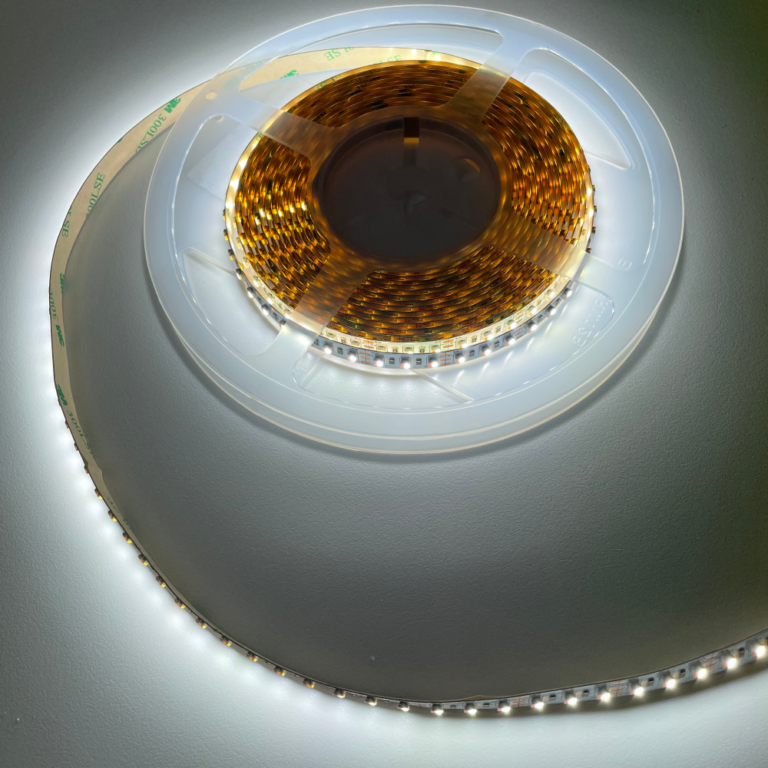

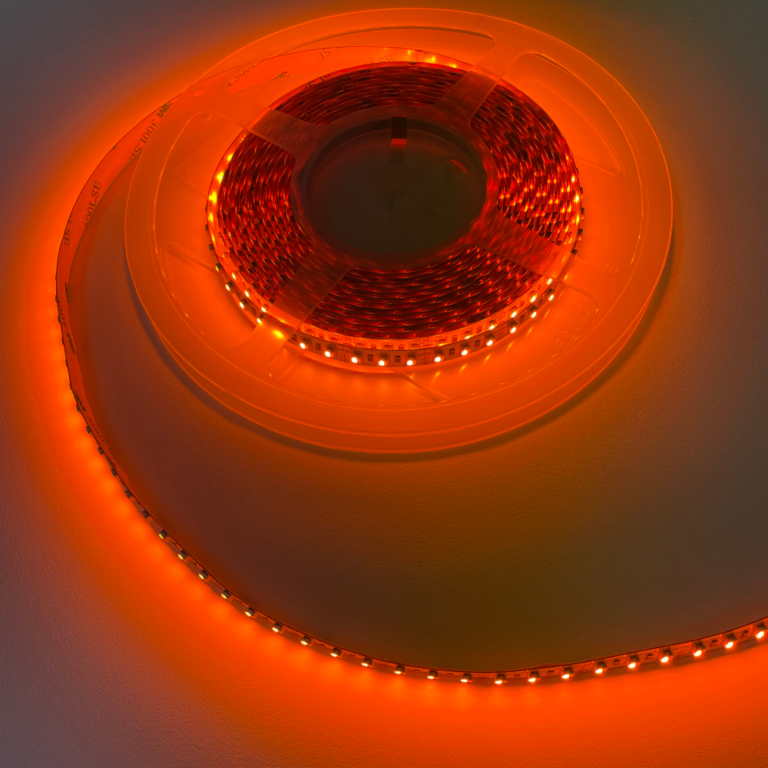

This dual white and orange LED strip light is designed to illuminate the outdoors whilst not attracting annoying insects.

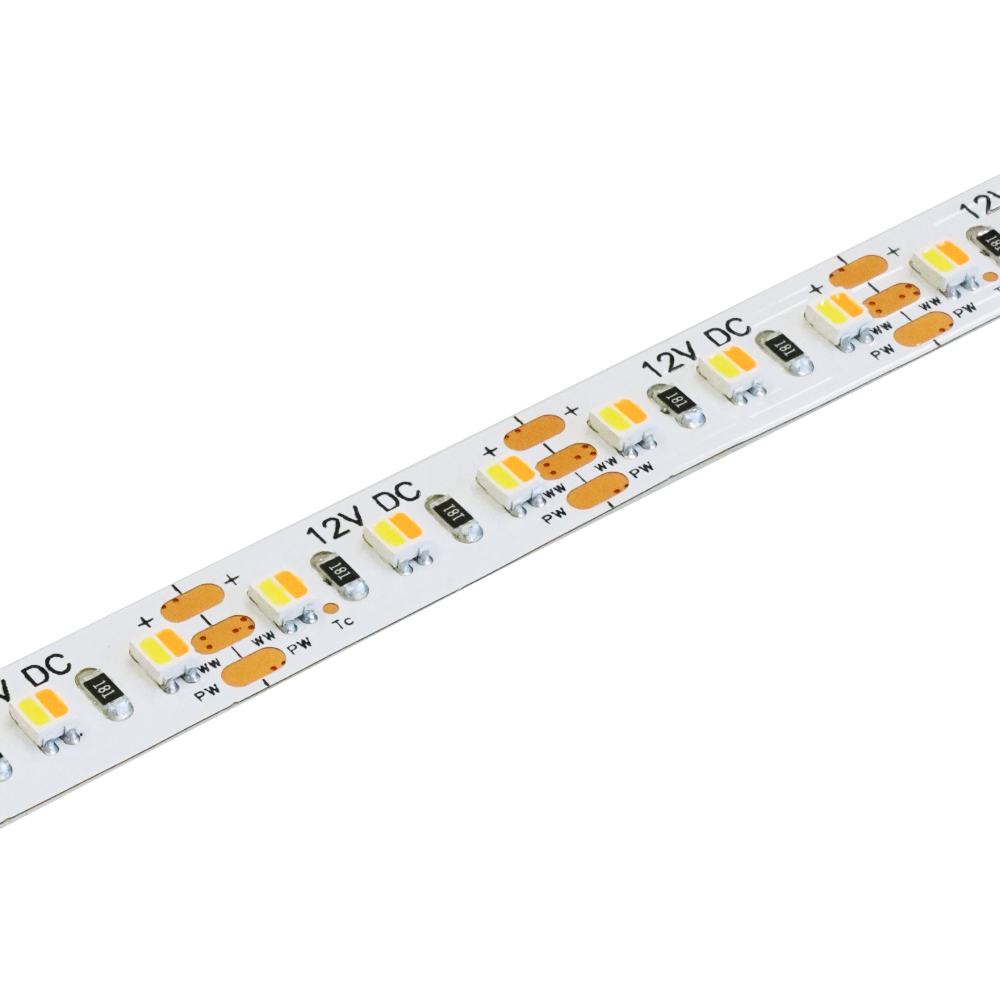

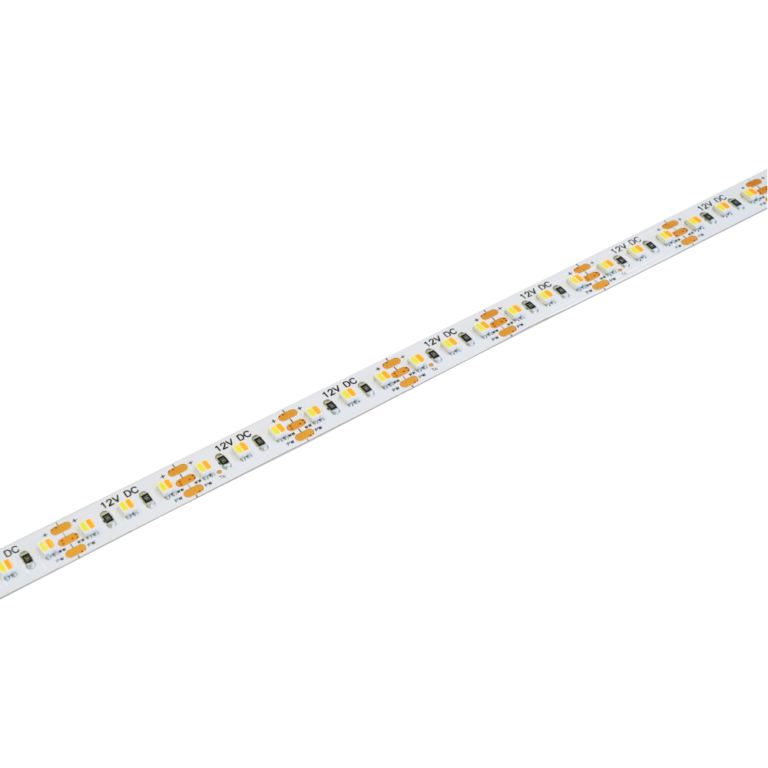

Dual chip LED technology allows this strip to emit both a white and an orange light independently or simultaneously.  With 120 LEDs per meter this LED strip light is not only bright, but visual dots are minimised due to the high density of LEDs.



We stock a wide range of controllers to suit dual colour LED strip light; from simple handheld remotes to Bluetooth and WiFi control.  These controllers will allow full colour mix control from white through to orange, i.e. 25% orange and 75% white or 100% orange and 0% white.  Brightness is also adjustable from 0~100% using any of the controllers.



This strip light operates from 12V DC, which is found on most recreational vehicles and boats.  We also stock a wide range of 240VAC to 12VDC LED drivers.



With an IP20 environmental rating it is best suited to indoor applications such as the interior of recreational vehicles.  The LED strip can also be housed within an aluminium profile for a more aesthetic look.  We also stock this LED strip in IP65 and IP68 versions best suited to outdoor applications.

Specifications

Electrical Data
Voltage 12 VDC
Wattage 1m 19.2 W (combined)
Current 1m 1.6 A (combined)
LED Data
Package Type 3527
Chips LED 1
LEDs 1m 120
Pitch 8.33 mm
Photometric Data
Colour Temperature 6500°K White + Orange
Colour Rendering Index Ra >80
Luminous Flux 1m 900 lm
Luminous Efficacey N/A
Beam Angle 120°
Dimmable 1 ∼ 100%
Construction / Protection Data
Substrate Double layer FPCB
Mounting Double sided tape 3M 9080
IP Rating IP20
Operating Temperature -20 ∼ +70 C°
Storage Temperature -20 ∼ +50 C°
Dimensions
Cutting increments 3 LEDs / 25mm
Length 20m
Width 10.0mm
Height 3.0mm
Lifetime
Working Life 70,0000 hrs
